Infrakit LINK™ for machine control system integrations
Unicontrol Cloud integration
This documentation walks you through the flow for integrating Unicontrol Cloud backed systems, such as Unicontrol Machine Control and Rover and U3D-X by L5 navigation. Integration enables linking projects between two cloud systems, enables automated transfer of design models to Unicontrol Cloud and automates the equipment real-time position and as-built data to flow from Unicontrol Cloud to Infrakit.
Updated 4 days ago
In Infrakit
If not present yet, create integration account for machine owner organization who is integrating with Unicontrol or L5 U3D-X gear
Give this integration account a "Survey Chief" rights
Invite account to Infrakit projects where Machine owner's machines need access
In Unicontrol Cloud
Login here: https://cloud.unicontrol.io/
1. Create connection between Unicontrol Cloud and Infrakit

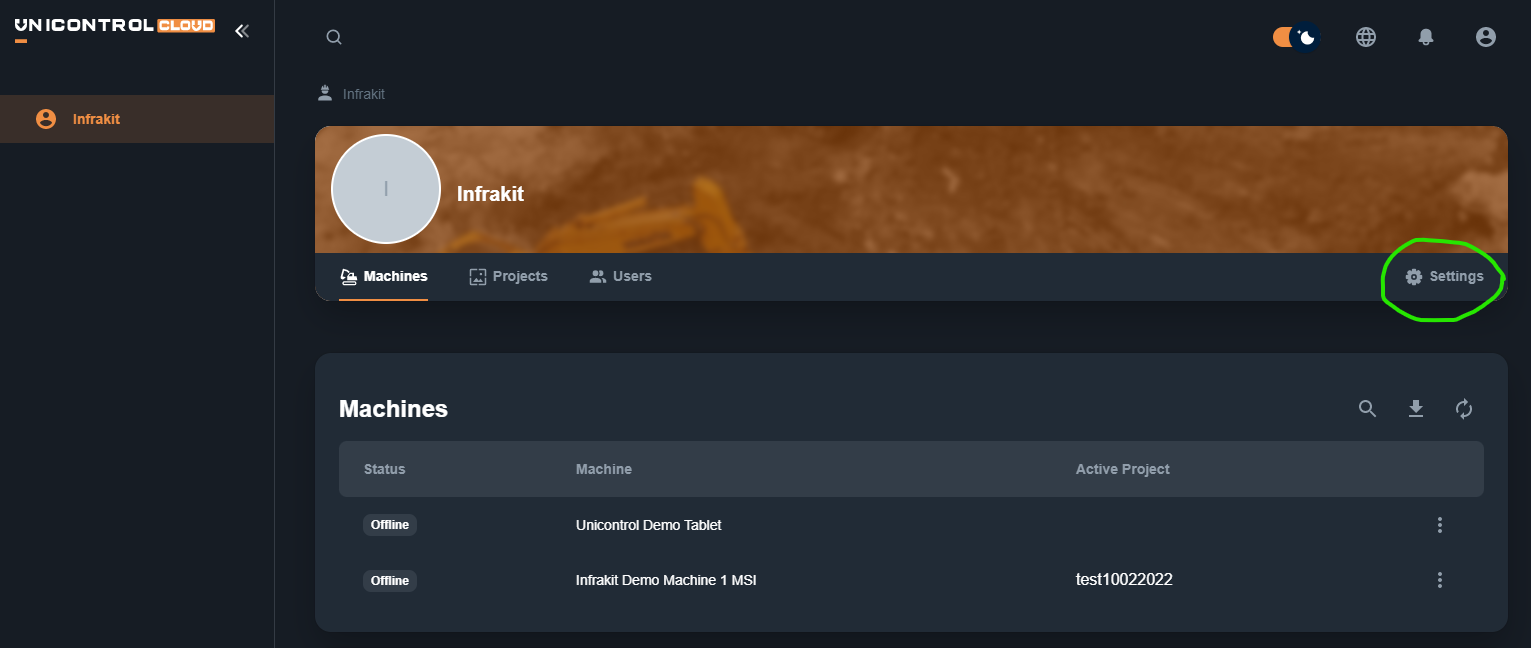

Navigate to Users -page and Settings:
If settings button is not visible, it means this organization does not have Cloud integrations activated. Contact to your Unicontrol Cloud support for this.

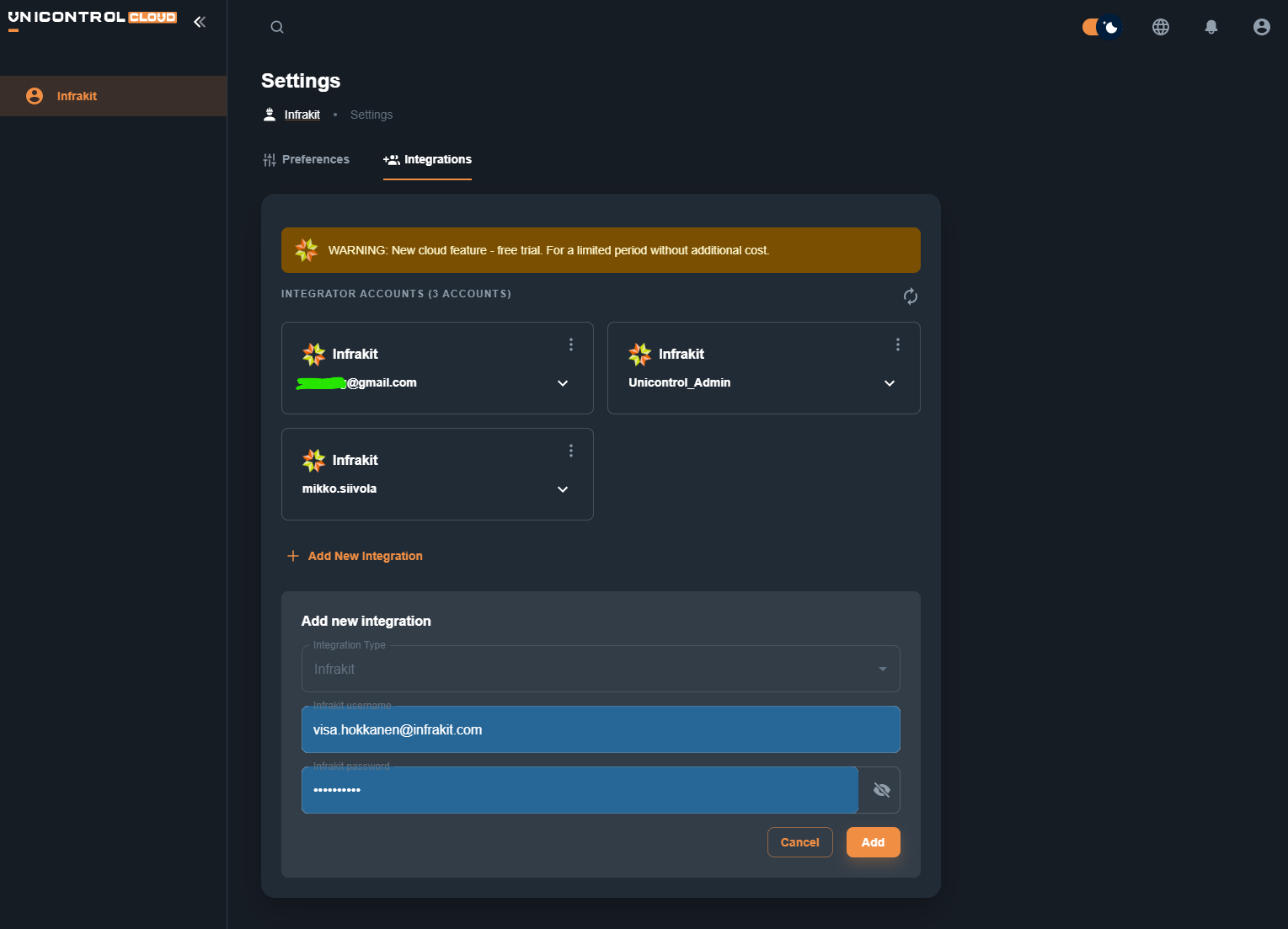

Add new integration with Infrakit integration account:

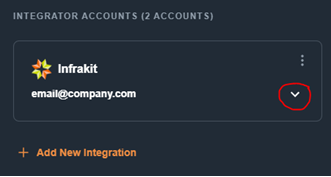

You can verify that account has access to Infrakit projects by clicking the down arrow symbol
2. Connect projects

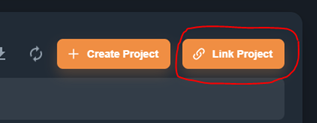

Navigate to Customers, Projects, Link project

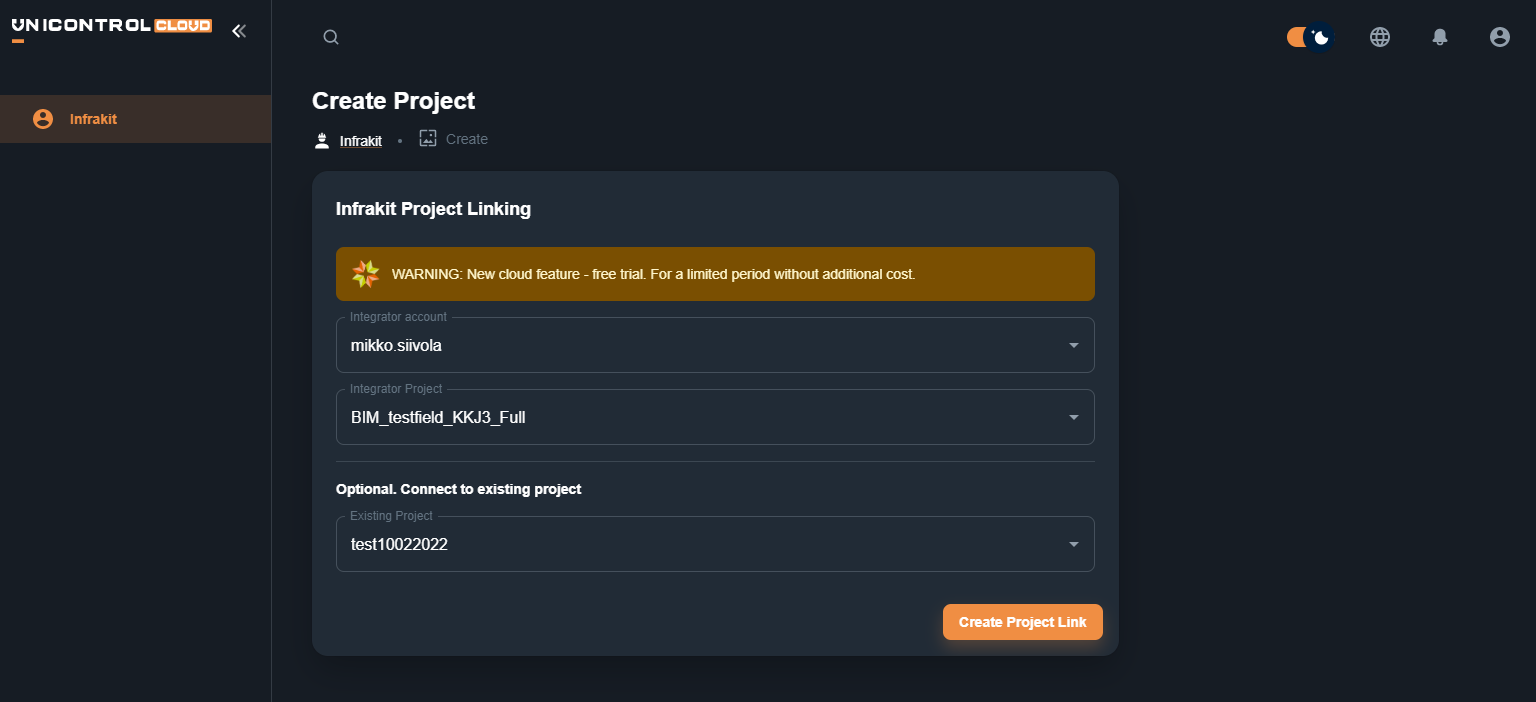

Infrakit Project Linking, Select Integration account
select Create new project, in this case Project name follows Infrakit OR
optionally select existing Unicontrol Cloud project
Project in Unicontrol Cloud can have different name to Infrakit if required
An Infrakit icon is shown next to the project name, to illustrate that the project is integrated with Infrakit.
Now it's important to go to Infrakit, find connected machine and assign files to machine
Sync interval is 15min, design models flow to Unicontrol Cloud Files page from Infrakit
Connected Equipment sync as-built (log points) and position to Infrakit
Miscellaneous notes
Unicontrol Cloud supports now folder structure from Infrakit. Files can overwrite earlier file.
As-built data and equipment positions are synced only upstream to Infrakit
File exchange (design models) are only synced downstream to Unicontrol Cloud
Sync interval is 15min, but it can be initiated from Unicontrol cloud by refreshing the files page if needed
When back at Unicontrol Cloud, eager people push refresh button on Projects list for immediate refresh of view
August 2024:
Automatic sync of design files from Infrakit to UnicontrolCloud
Automatic sync of as-built data, positioning and machine data from UnicontrolCloud to Infrakit
Sync interval is 15min
September 2024
Equipment status is updated in Infrakit
November 2024
Folders from Infrakit are now synced to UnicontrolCloud
